VMaC-310 Colour & VMaC-306 Mono
Versatile Monitoring and Control

The VMaC-3 Series is a Versatile Monitoring and Control system built around a stand alone colour touch-screen user interface. This platform allows for the monitoring and display of a flexible range of inputs for up to 24 tanks. It provides functionality to aid in all important processes commonly associated with sites that store product in tanks.

VMaC - 310

Download ...

A platform for monitoring and control of a multiple array of sensors and switches:-

Process: - Level, flow, pressure, temperature, etc.
Environmental: - Effluent, emissions, interceptors, bunds, etc.
Safety: - Guards, gates, valves, pumps, etc.

With multiple communications ports not only is it an ideal hub for connecting and interfacing to discrete field devices, but also a gateway for the integration and data transfer between other systems such as security or loading systems.

The system allows the system installer to configure up to five measuring devices on each of 24 tanks; potentially 120 variable parameters! E.g. level, flow, pressure, temperature, pH, etc

The system includes configurable relay outputs for alarms or pump/valve control on each tank. Also set up digital inputs from float or limit switches on each tank

A security model is implemented to ensure that only those with appropriate rights can access the various system features and configuration options. This, coupled with a comprehensive system of Event Logging ensures that it's always a simple matter to determine exactly what events happened and when.

Calibration tables holding up to 500 level to volume conversion points per tank coupled with 16 bit resolution provides highly accurate contents readings when connected to precision level measuring devices.

GPRS modem capability is a standard feature allowing text and email notification of alarm events. The system can even manage the routing of text responses to other designated recipients on the notification list.

The in-built Web Server allows access to and control over the entire system from anywhere in the world; all you need is an internet connection and you can connect to your site; keep an eye on the stock level in a particular tank or monitor the progress of important transfers and blends.

It is also possible to install new features to the system remotely, so we can instantly upgrade your system, no matter where you are in the world.

10 Colour touch screen (Outdoor rated)
RS 232 and RS 485 ports
Ethernet port
Configurable alarm output relays
FTP file server
Remote system access via Web, LAN or modem
Import/Export of system configuration data
Remote display and printer options
Systems available in steel, stainless or GRP enclosures
Available with ATEX isolators
Analogue device 4-20mA or 1-5 volt inputs
SMART device Modbus and Modbus TCP/IP inputs
Digital switch inputs
24v dc available for field devices and switches
GPRS modem: Text alarms and emails
24/7 data logging

For more information on the
VMaC-310 System contact us today ....

For more information on the VMaC-306 System contact us today ....
VMaC - 306

The VMaC-3 Series

A 16 tank monitoring system is also available. With a simple mono display this lower cost system, is aimed at smaller installations, but still provides most of the high level background functionality and connectivity of its larger 310 cousin.
6 Mono touch screen display (Outdoor rated)
16 Tank capacity
Analogue device 4-20mA or 1-5 volt inputs
SMART device Modbus and Modbus TCP/IP inputs
Digital switch inputs High level switches.
24v dc available for field devices and switches
GPRS modem: Text alarms and emails
RS 232 and RS 485 ports
Ethernet port
Configurable alarm output relays
FTP file server
Remote system access via Web, LAN or modem
Import/Export of system configuration data
Remote display and printer options
Systems available in steel, stainless or GRP enclosures
Available with ATEX isolators
24/7 data logging




O
O
O
O
O
O
O
O
O
O
O
O
O
O
O
O
O
O
O
O
O
O
O
O
O
O
O
O
O
O
O
O
O

PAWCO Ltd.
Unit J, Alanbrooke Industrial Park
Station Road
Topcliffe
Thirsk
Y07 3SE

Tel: 01347 838 080
Fax: 01845 577 800

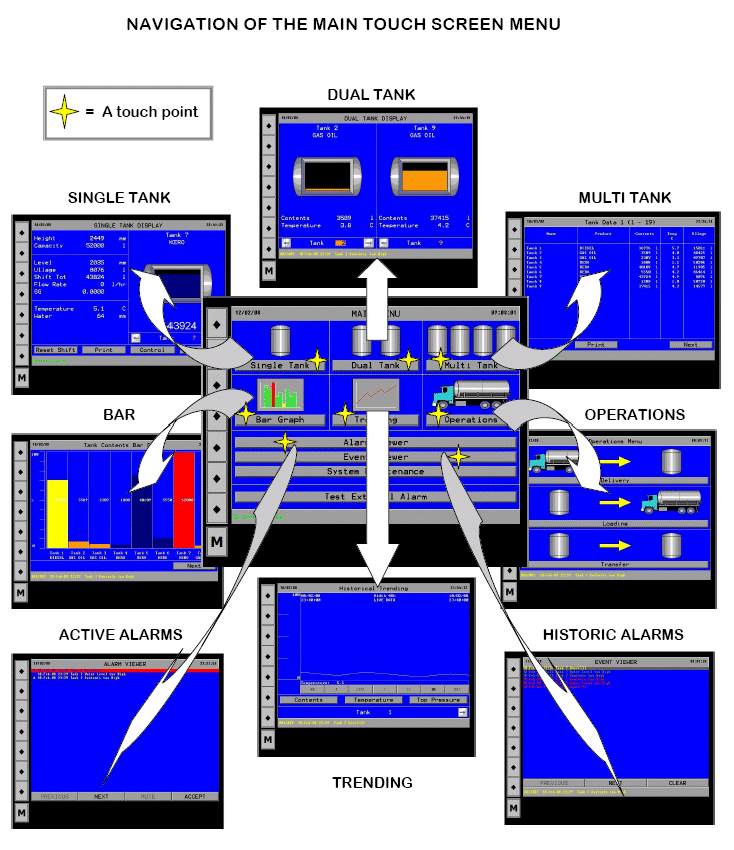

NAVIGATION OF THE MAIN
TOUCH SCREEN MENU

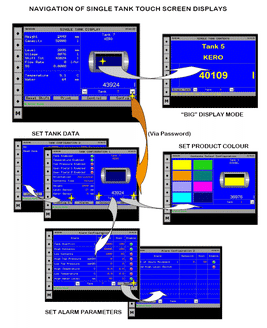

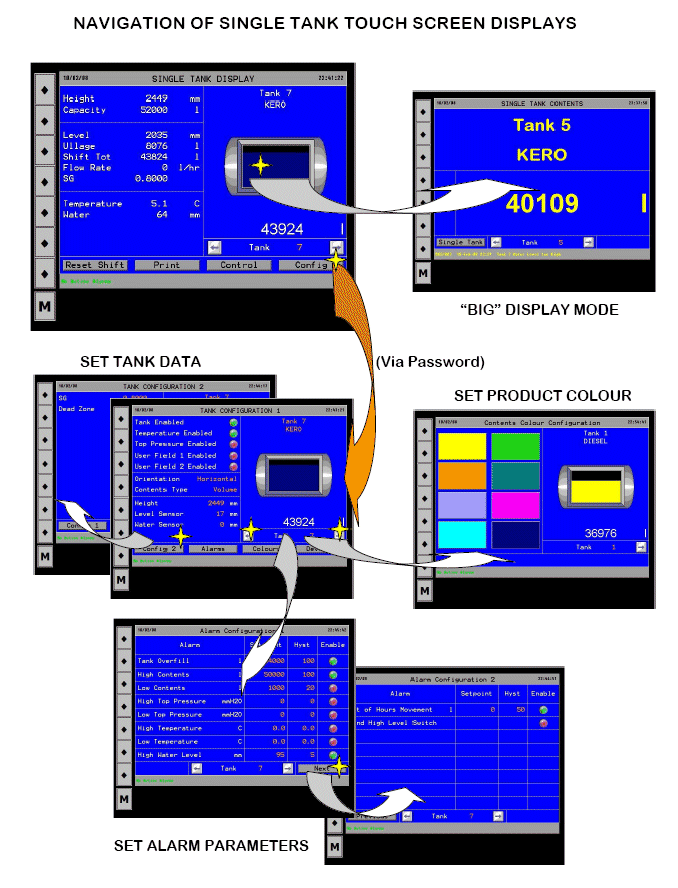

NAVIGATION OF
SINGLE TANK TOUCH SCREEN

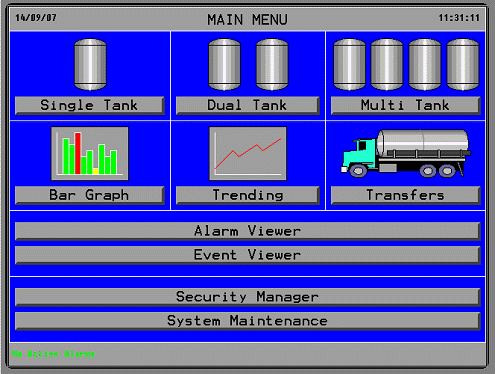

VMaC - 310
